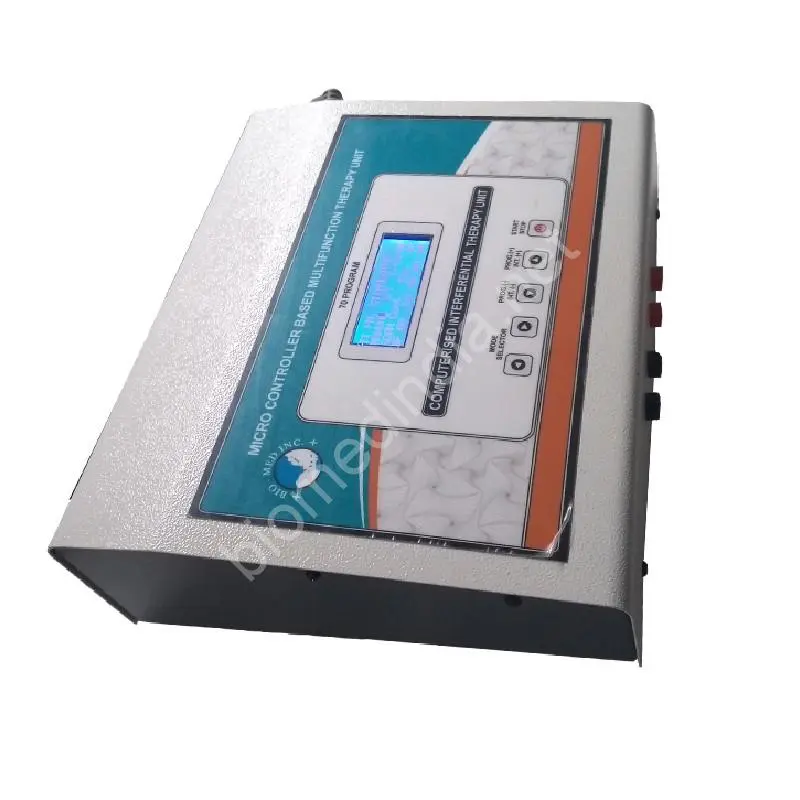

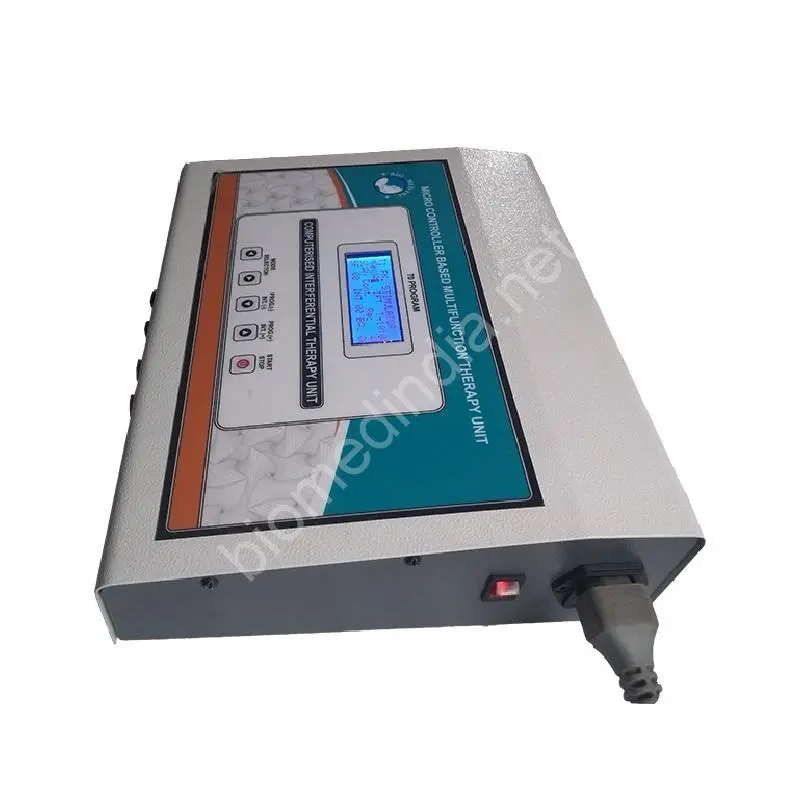

BMI 1198 Interferential Therapy LCD Display

Description

BMI 1198  Interferential Therapy LCD Display – Uses

increasing blood circulation ,reducing pain, and inflammation,vasodilation,curing oedema and hematoma,removing waste substances from the affected area,increasing muscle stimulation

Increasing metabolic rate,decreasing blood pressure,treating chronic ligamentous lesions

improving restricted movements of joints,restoring the lost movement of muscles

Technical Specifications:

• Operating Voltage :- 230 volts AC supply 50Hz, 5 AC current
• Output type : 100% Isolated
• Medium frequency :- 2 KHz & 4 KHz
• No of Programs :- DO to 32′ Total 70 programs
• Output :- Two separate outputs CH-1 & CH-2
• Output Frequency :-It can be varied by intensity control
• CH-1 – 4000Hz – 3850Hz depending on the beat freq. on selection of scan program
• CH-2 – 4000Hz – (constant)
• Selection is also provided for 2000Hz ie. 2 KHz Freq
• Interference frequency : 0- 150Hz
• Timer :- 0-99 minutes. When Timer reads ’00’ output cut off with alarm

 Standard Accessories:

Output Cable with Jack pin                 : 2 Pairs

Silicone Conductive rubber pads        :  2 Pairs

Main Line Cord                                   :  1 Nos

Dimension & Weight

Dimension                 (12.5 x 10.8 x 3.5) (LxWxH) cm

Weight                      4 kgs
