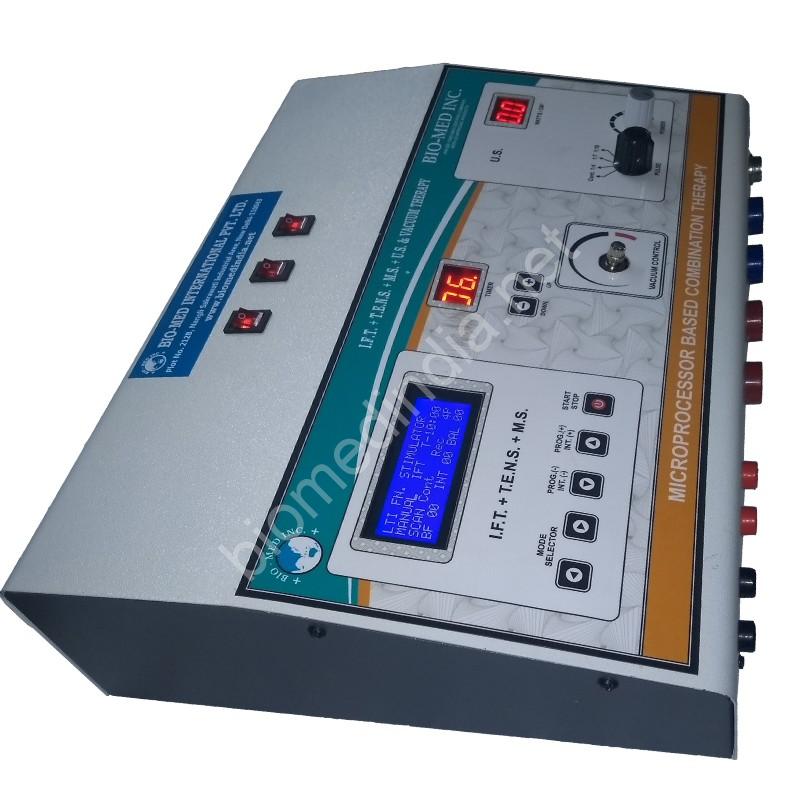

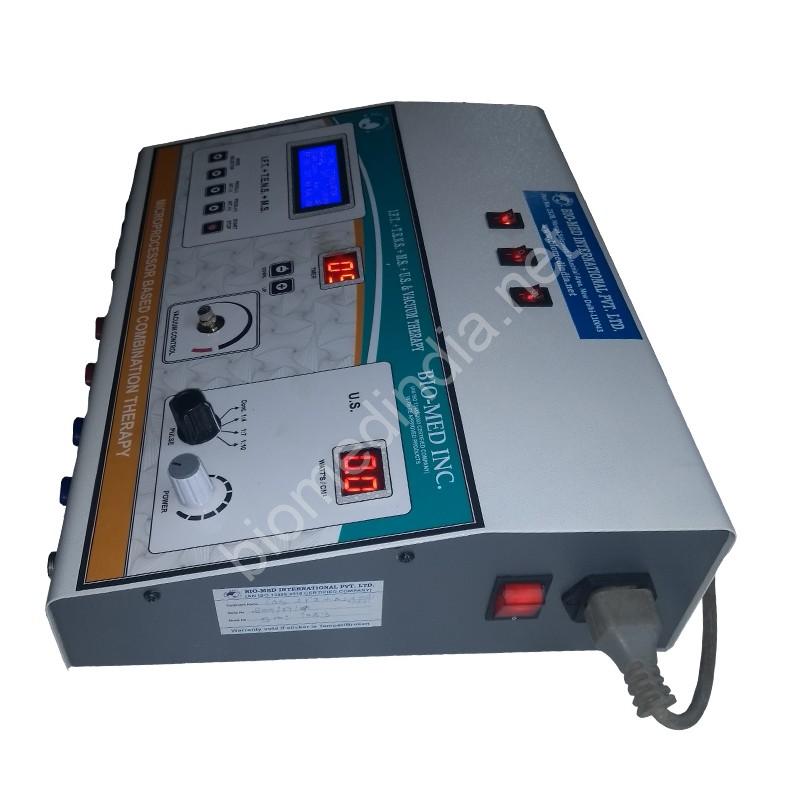

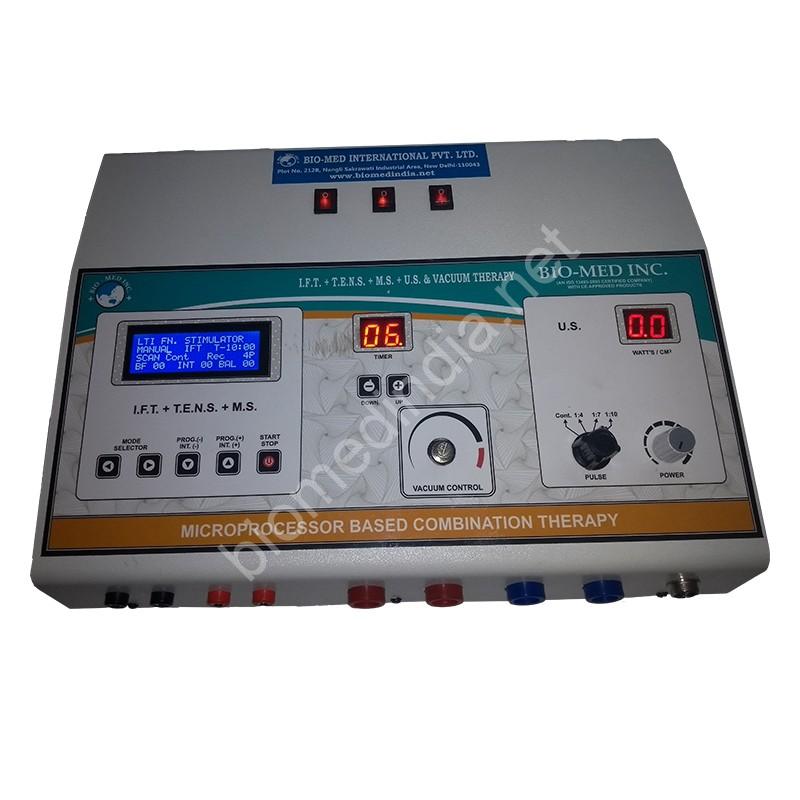

BMI 1053 Combination unit of IFT/US/MST/TENS& Vacuum unit

Description

BMI 1053  Combination unit of IFT/US/MST/TENS& Vacuum unit –

Uses Gain explosive speed and power

Improve the endurance of the muscles

Increases healing of tissues by enhancing protein synthesis and increased microcirculation

Reduced risk of injury through proper warm up

Build muscle size and density

Increase vertical and muscle reaction time

Increase local blood flow to sore and achy muscles

Pain management Through increased circulation and mobility

TECHNICAL SPECIFICATIONS

Operating Voltage                              :   230volts AC supply 50Hz, 5AC current.

Output Type                                       :   100% isolated.

Medium Frequency                            :   IFT and RUS.

No. of Programs                                 :   00 to 32 Total 33 Programs.

Output                                                :   Two separate outputs CH-1 & CH-2.

Output Frequency                              :   It can be varied by intensity control.

CH-1 – 4000Hz – 3850Hz depending on the

beat frequency on selection of Scan program.

CH-2 – 4000Hz –Constant.

Selection is also provided for 2000Hz i.e. 2Khz

Frequency.

Interference frequency indicator by 3 Digits Digital Seven Seg. Display.

Timer                                          :        0 to 99 minutes can be varied (But by default 15 min.)

Scan Patterns                           :         Rectangular ,Trapezoidal ,Triangular

Therapy Modes                        :        T.E.N.S.  INTERFERENTIAL THERAPY.

:         4 Pole Vector Interferential Therapy.                                                                                                              :         4 Pole Interferential Therapy.

Interferential Therapy (Electrotherapy amplitude modulated medium frequency alternating currents AMF) combines two effects.

The Unit generating two types of frequency i.e. 4000Hz & 3850Hz.

1. 4000Hz primarily for analgesic effects and stimulating of the circulation.
2. 3850Hz primarily for muscle strengthening (Electro gymnastics).

Ultrasonic Therapy

Ultrasonic nominal frequency            :           1 MHZ

Ultrasonic output                                 :           15 Acoustic was maximum

Ultrasonic power density mode          :           2.5 watts/cm2 Continuous and of

Operation                                                        pulsed.

Pulse ratios                                         :           1:1, 1:4, 1:7, 1:10

Treatment Time                                  :           0 to 6 minutes.

Audio alarm at the treatment              :           Electronic timer with digital display.

Power input                                         :           90 VA 200 V 50 Hz A.C.

VACUUM :

Mains input                    220V / 50 Hz

Power consumption      46 Watts

Main Fuse                     1 Amp x 2

Input                              Four banana jacks for electrical Input

Output                           Four pneumatic connector for Electrical

& reduced pressure coupling

Vacuum                         0 to 600 m Bar

Pulsation                       10 to 60 pulse / min

Standard Accessories:

Out Cable : 1 Nos.

US Head: 1 Nos.

MST Cable with Electrode +Pen – 1 Set

Electrode- 1 Set

Vacuum Cup- 1 Set

Elastic- 1 Nos.

Main Cable – 1 Nos.

Jelly – 1 Nos.

Dimension & Weight

Dimension                   H x L x D – (105 x 310 x 300 mm)

Weight                       8 kg.
